| 브랜드 이름: | IBON |
| 모델 번호: | IB1660 |
| MOQ: | 1 |
| 지불 조건: | , T/T, Western Union, MoneyGram |
| 공급 능력: | 한 달에 30 세트 |

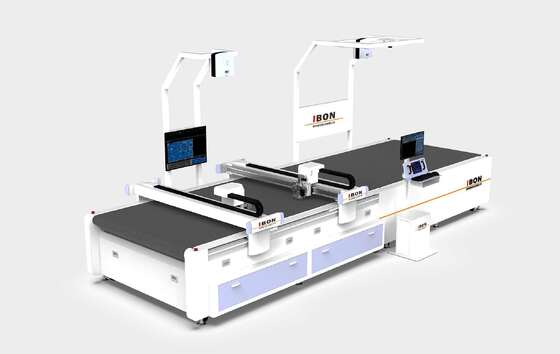

The IBON IB1660 Dual-Head Genuine Leather Cutting Machine is a high-end CNC cutting solution specially designed for leather goods, footwear, upholstery, automotive interiors, bags, gloves, sofas, and luxury accessories.
Equipped with two independent cutting heads, the IB1660 significantly increases productivity, speeds up order delivery, and ensures consistent cutting accuracy for every leather piece.
| Model | IB1660 |
|---|---|
| Work Area | 1600mm × 6000mm |
| Machine Dimension | 2150mm × 7000mm |
| Packing Dimension |
Case 1: 3,7500mm (L) × 2,280mm (W) × 1,600mm (H) Case 2: 3,500mm (L) × 2,080mm (W) × 1,220mm (H) |
| Weight | 2000kg |

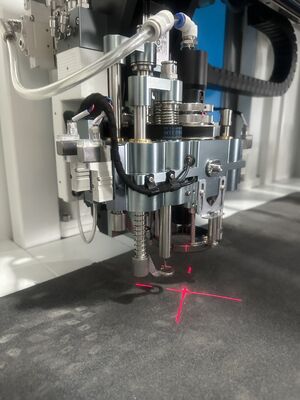

| Cutting Arm | 2 cutting heads |
| Feeding Method | Automatic feeding |
| Air Pressure | 0.75~0.85Mpa |
| Cutting Precision | ±0.1mm |
| Cutting Thickness | 0.1~30mm (depends on material) |
| Material Fixation | Vacuum partition automatically follows adsorption |
| Transmission Motor | Mitsubishi Servo motor |
| Data Format | DXFHPGL |
| Rated Voltage | AC220V-380V, 50HZ |
| Rated Power | 13.2KW |
| Applicable Material | Genuine leather, Synthetic Leather, PU, Mesh fabrics, Oxfords, Textile |
| Transmission Device | Drive shaft + timing belt, linear guide rail + timing belt |
| Vacuum Pump Voltage | Ethernet port and LAN cable |
| Compatible Software | IBON self-developed control software |
| Cutting Speed | Up to 0-1200 mm/s |
| Processing Thickness | 0.1-30 mm |
